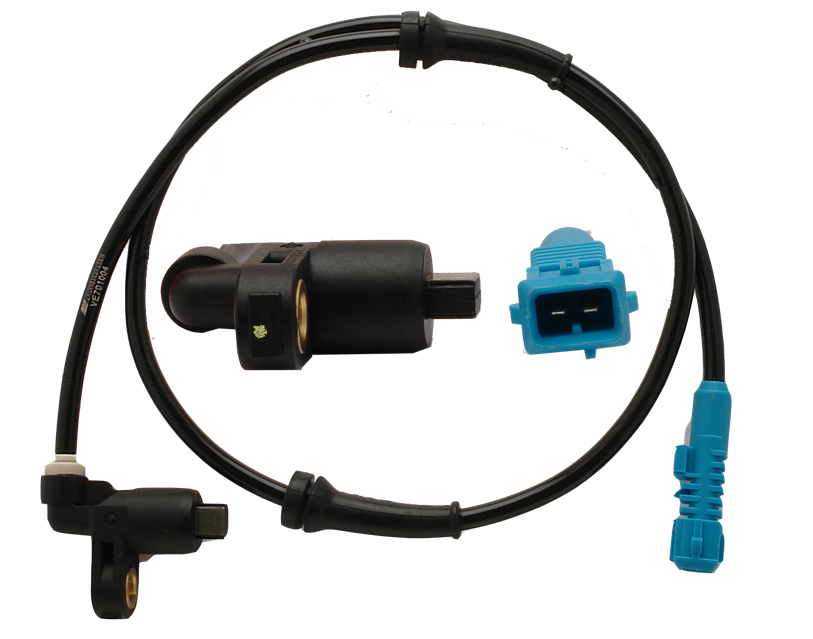

ABS Sensor

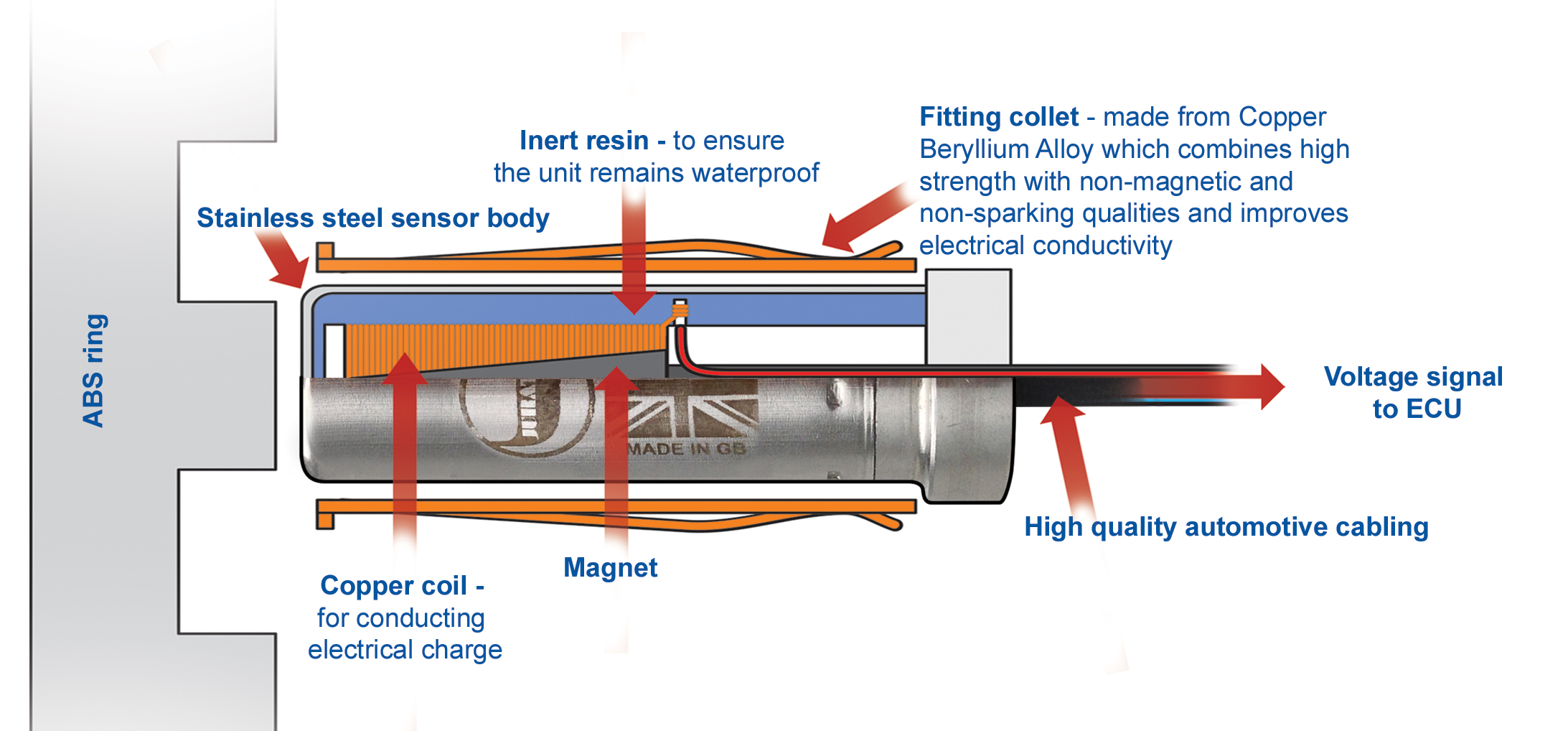

An ABS sensor is used for determining wheel rotation speed to prevent lock up when braking. The inductive ABS sensor consists of a permanent magnet with a coil around it. The magnetic field strength changes when a magnetism sensitive object passes through the magnetic field.
The ABS sensor signal is monitored by a special ECU (Electronic Control Unit). When the wheel rotates fast enough for the ABS sensor signal to become larger than a certain threshold, the ECU determines the wheel speed using the rising and falling edges of the signal. When a wheel clearly has a lower speed than the other wheels or decelerates faster than the vehicle could, the ECU lowers the brake pressure for that particular wheel. This will result in a wheel speed increase and prevents skidding. When necessary, the brake pressure is continuously adjusted multiple times per second until the vehicle nearly stops and the signal voltage falls below the threshold.
TEMCO has long been working with wheel sensors integrated into case bearings. This addition to our program is a natural and necessary expansion of the overall product range. We offer a wide spectrum of ABS sensor technology. Reinforced polyamide and thermoplastic polyester ensure the reliable functioning of our sensors within all temperature ranges and guarantee that our parts are one-hundred-percent safe in all critical situations.
All our sensors are tested 10 times throughout the manufacturing process. Then 10 random test samples are selected from every batch. These are then subjected to harsh bump and environmental tests to emulate the harsh conditions of being on the road. It is only when all tests are complete, that each batch are released for dispatch.
* Wide selection of designs to meet specific car requirements
* Premium materials including shrink-wrapped signal and power cables
* Plated connectors increase conductivity, prevent corrosion
* Precisely fitting, robust, and reliable
* Thermal load > 800ˇăC
* Use of high-quality cable components
For more information about TEMCO ABS sensor, please download catalogues or contact us
