Brake Cylinder & Clutch Cylinder

Hydralic Wheel Brake Cylinder & Clutch Cylinder

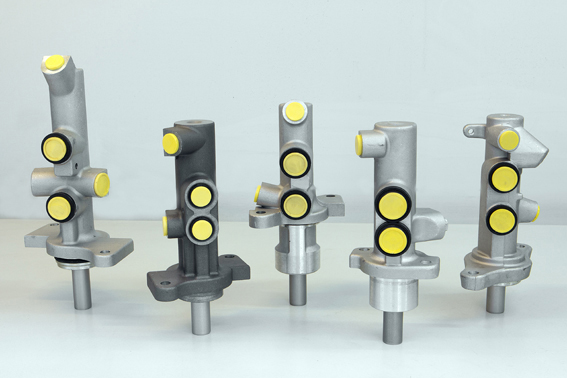

BRAKE MASTER CYLINDER

The brake master cylinder converts the physical pressure applied on the brake pedal into hydraulic pressure compressing and moving the liquid through the ducts to the wheel cylinders ( whose pistons expand to push the brake shoes against the drum ) or the brake calipers (whose pistons push the pads against the disc) The brake pump can be single-stage or two-stage . It is made of cast iron or aluminium.

BRAKE WHEEL CYLINDER

Thanks to the pressure of the fluid pumped from the brake master cylinder , the pistons of the brake cylinder widen pushing against the drum the jaws which in turn produce the friction to stop the vehicle . The hydraulic seal of the device is ensured by gaskets mounted on the body of the piston. It is made of cast iron or anodized aluminium .

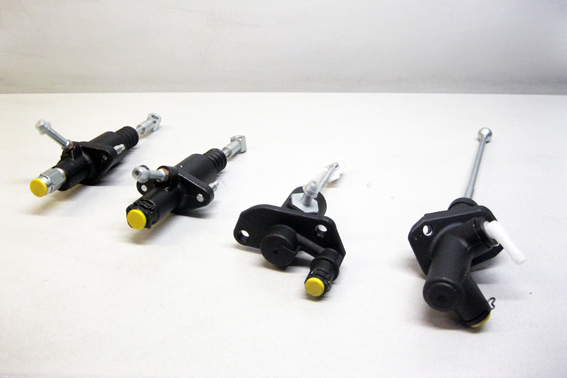

CLUTCH MASTER CYLINDER

The clutch master cylinder converts the physical pressure applied to the clutch pedal into hydraulic pressure compressing and moving the liquid through the ducts until the clutch slave cylinder , which moves the clutch disc in contact with the flywheel to allow gear changes. It is made of steel, cast iron, aluminium or plastic. All tanks are manufactured in PA 80,100 to provide high levels of resistance to chemical and atmospheric agents .

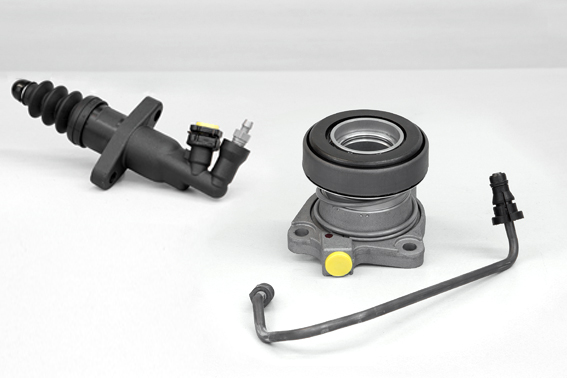

CLUTCH SLAVE CYLINDER

Due to the pressure of the fluid pumped by the clutch master cylinder , the clutch slave cylinder moves the clutch disc in contact with the flywheel to allow the gear change. It is made of steel, cast iron , aluminium or plastic.

TEMCO's vehicle-specific, high-quality wheel & clutch cylinders are designed to assure proper fit, installation and safety. Our wheel & clutch cylinders are assembled with quality components that resist corrosion, contamination and wear, and are 100% tested for durability and reliability. They are built for long service life and feature the high quality rubber components for superior resistance to heat, contamination and leakage. Bore finishes are machined to exacting RA specifications. Bleeder screws are hardened and zinc dichromate-coated to resist rust and corrosion. With close adherence to exact form, fit and function, TEMCO's wheel cylinder and clutch cylinders will provide you the premium quality brake & clutch products for vehicles.

* Engineered with durable EPDM & SBR rubber cups and boots for extended performance

* Micro-polished sleeve for low wear surface

* Pressure and flow tested

* High corrosion resistance

* Longer product life cycle and durability

* Matches OE fit & specifications

Recommend to be installed with TEMCO premium Brake Pads & Clutch Kit for an Exceptionally Quiet and long lasting Brake & Clutch Job.

Products available in Toshio, Kasuki, Okayama & Nicolas&Berg packing. For more information about TEMCO hydraulic brake cylinder and clutch cylinder, please download catalogues or contact us
